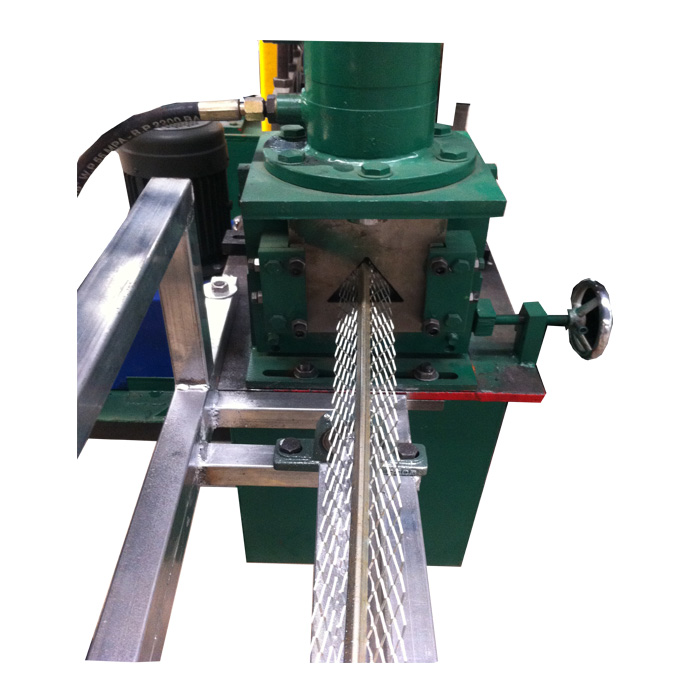

ANGLE BEAD MACHINE

1.MACHINE FUNCTION

The corner beads making machine is designed for manufacturing the diamond mesh corner beads .The raw material used shall be in conformance with GB/T343-94 .the standard of thermally galvanized steel sheet for general use.The products are widely used in building.The wing of corner beads can inosculate.The specification of corner beads making machine can produce are as the following table:

NO	Items	Unit	Basic parameter
1	Thickness	mm	0.2-0.5mm
2	Width of Mid-sheet	mm	30
3	Standard length	mm	2000-3000
4	Diamond mesh	mm	Max 75
5.	Mesh size	mm	7070 and 5050(need two different die)
6.	motor	KW	3.0kw

2.COMPONENT PART OF THE MACHINE

Decoil, punching machine, curve and curve mold, automatic cutter, setting length device, and electric control system

3.MAIN TECHNICAL PARAMETERS

The corner beads making machine basically consists of two main systems,punch and curer-cutter.

The main technical parameters of the machine are as the following table:

Punch

NO	Item	Unit	Basic parameter
1	Electrical Motor	Model	Y100L1-4
1	Electrical Motor	KW	2.2
2	Work Voltage	V	380
3	Stress	KN	250
4	Punch Times	t/m	100-120(about 3-5m/min)
5	Slip Distance	mm	70
6	Slip Adjusting	mm	40
7	Size of work table	mm	530×320
8	Hole of work table	mm	130
9	size	mm	1200×1000×2200

Curve-cutter

1	Electric motor	0.75KW and 3KW
2	Work voltage	380V
3	Rate of production	3-5m/min
4	Size	1500520900mm

Air pump

1	Electric motor	1.5KW
2	Work voltage	220V
3	stress	0.55-0.8mpa
