welded panel mesh machine

Adding time：2017-08-04 Clicks：

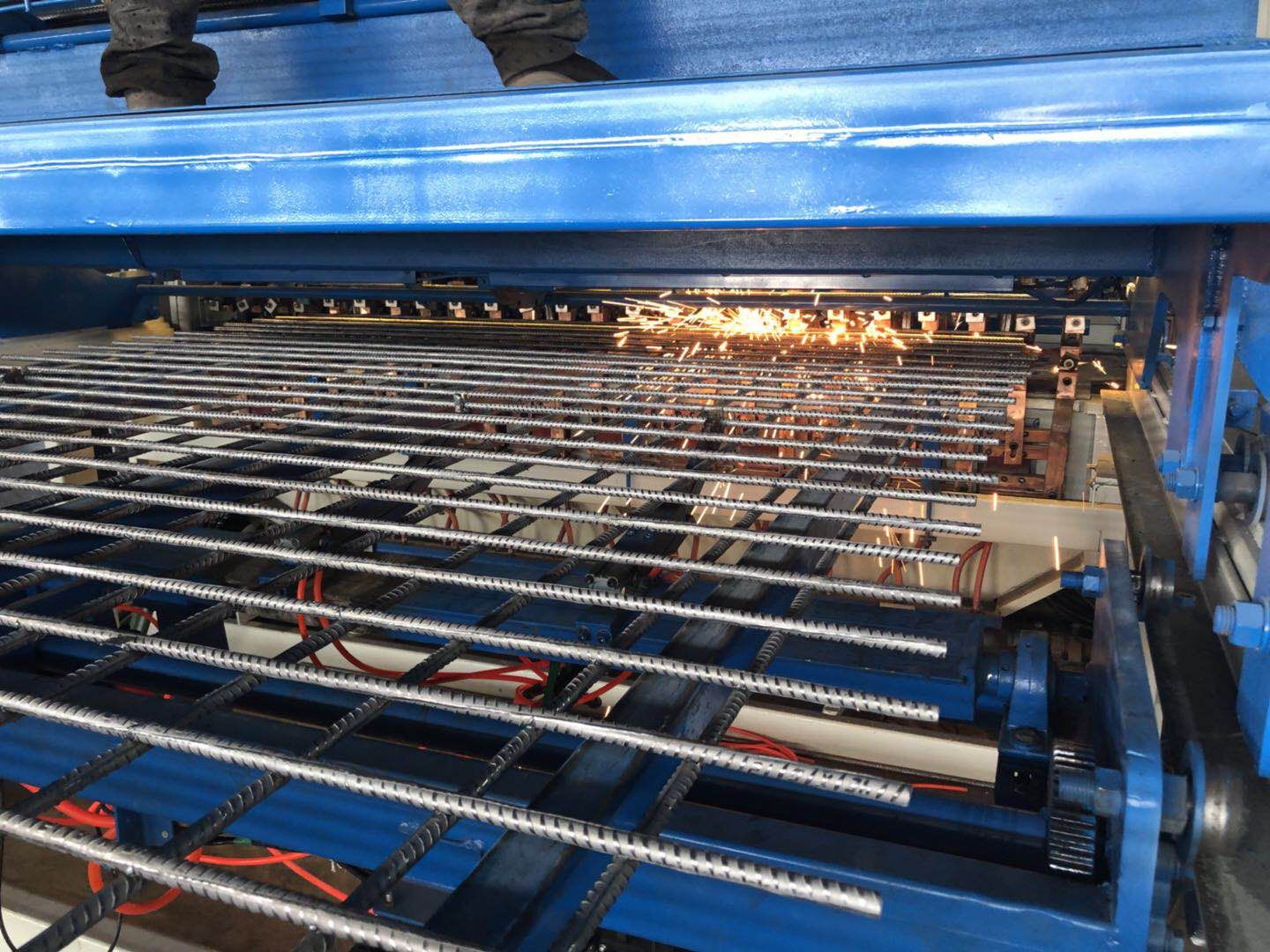

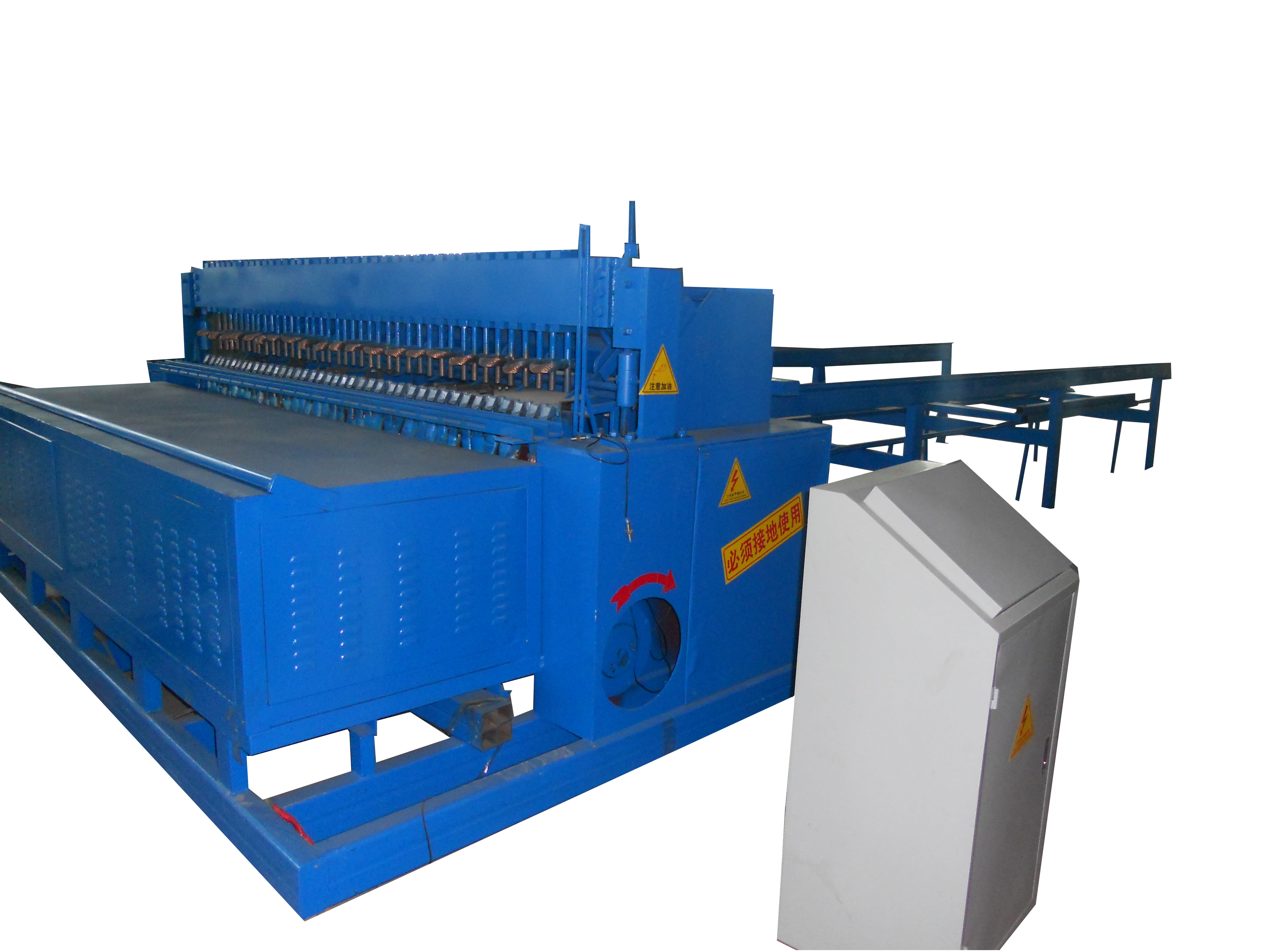

Welded Mesh Panel Machine

Brief instruction:

1. automatic mesh panel welding machine manufacturer adopts synchronous control technique.

2. The cent-control and welding time are composed of PLC program system

3. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding . Welding by electro-motor ;

4. the hopper adopts the steeping motor; brake motor wheels ;pulling the wire net is controlled by the steeping motor . The line wire and the weft wire are pre-straight and pre-cut .

5. The greatest advantage is you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.

Technical data of welded mesh machine

1. Function			Automatic welding panel machine
2. usage			Prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry
			Welded steel bar panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.
3.model			SHW2500
4. Size of outside		width	3.5m
		length	2.3m
		height	2.2m
5.weight			3.5T
6.power			3.0kw
7.voltage			380v/60hz( according your need)
8	Max. Width of mesh		2.5m
	Mesh size		50--300mm
9. Transformer			100KVA*5
10. Diameter of welded pot			16mm
11. Diameter			2.0-6.0mm
12. Welded material			Low carbon wire,galvanized
13.Workshop need			5*15m
