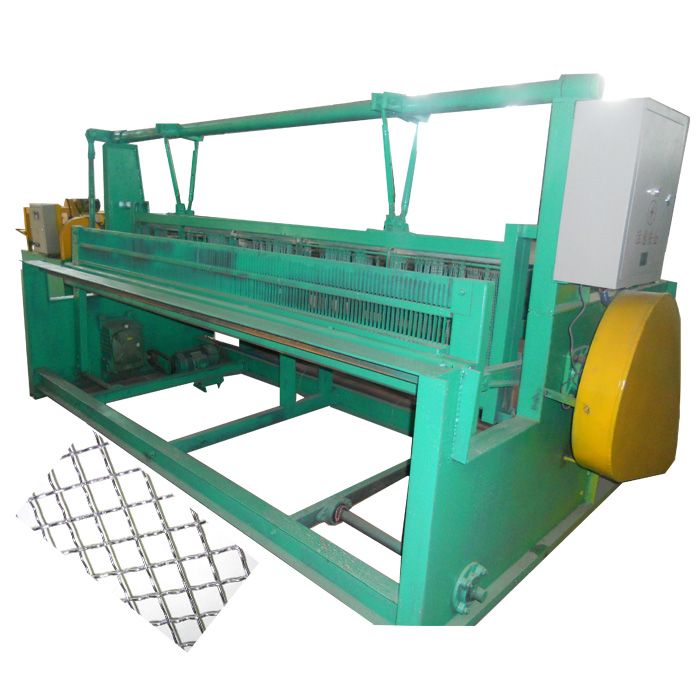

crimped wire mesh machine

crimped wire mesh machine

The new crimped mesh machine covers the type of old loom, the function is more than maturity, the standardization eagerly anticipates the wire mesh machinery new tidal current, its perfection manifests below:

1, the designation of outside can compare favorably with 130 shuttles loom, which is made in Japan

2, reform the spare part not be able to use in common, brings the trouble to user

3, create four kinds of weaving, so the crimped mesh machine are used more widely

4, strong, weave precisely

5, the times of shuttle belt is improving greatly (65 times/min)

Type1: full automatic crimped wire mesh machine

Technical parameter:

Wire diameter: 0.2-2.0mm

Width: 2.0m

Mesh size: 0.8-15mm

Outside size:1500*1800*1300mm

Weight:2.8Ton

Spare parts:wire crimping machine,bobbin(30sets),uncoiler for roller,one mold

Type2： full automatic crimped wire mesh machine

Technical parameter:

Wire diameter: 2.0-6.0mm

Width: 1.0--2.5m

Mesh size: 4--150mm

Outside size:3000*2200*1500mm

Weight:3.8Ton

Spare parts:wire crimping machine,bobbin(30sets),control system,one mold,cutter

Type3：semi-automatic crimped wire mesh machine

Technical parameter:

Wire diameter: 2.0-8.0mm

Width: 1.0--2.5m

Mesh size: 2*2--200*200mm

Outside size:3500*2100*1300mm

Weight:2.8Ton

Spare parts:wire crimped wire machine,cutter,one mold

Type4: hydraulic crimped wire mesh machine

Technical parameter:

Wire diameter: 7--16mm

Width: 1.0--2.5m

Mesh size: according mold

Outside size:3200*2400*1300mm

Weight:2.8Ton

Spare parts:wire crimping machine,cutter,one mold,control system
